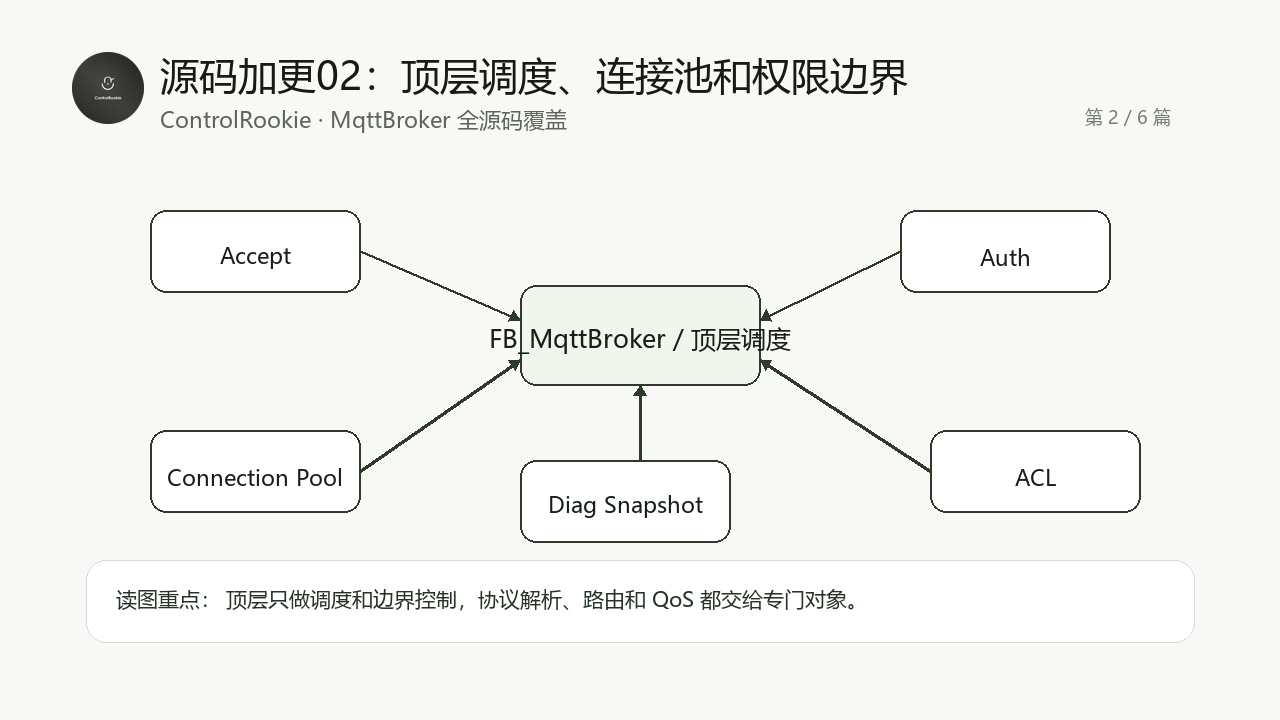

源码加更02_FB_MqttBroker 顶层调度、连接池和权限边界

/// =======================================================================
/// 名称      : M_AcceptNewConnection
/// 功能      : 接受一个新的 TCP 客户端连接
/// 说明      : 每扫描周期最多分配一个新连接，避免大量接入瞬间拖长 PLC 扫描周期。
/// 编程人员  : ControlRookie
/// 时间      : 2026-05-08
/// 版本      : V1.0
/// =======================================================================
{attribute 'hide_all_locals'}
METHOD M_AcceptNewConnection : BOOL
VAR
    uiIndex : UINT; // 连接槽位扫描索引[1..cnMaxClientSlots]
END_VAR

// === IMPLEMENTATION ===
uiFreeSlot := 0;
uiUsedSlotCount := 0;
xTcpAcceptActive := FALSE;
xTcpAcceptError := FALSE;

// 每个客户端槽位必须独立调用自己的 NBS.TCP_Connection。
// 之前如果多个槽位复用一个 TCP_Connection 实例，hConnection 会被后续接入覆盖，
// 连接槽位中的 TCP_Read 就可能读到已经失效或不属于自己的句柄，现场表现为客户端连接瞬间掉线。
FOR uiIndex := 1 TO GVL_MqttBroker.cnMaxClientSlots DO
    IF aConnections[uiIndex].xActive THEN
        // 已占用槽位继续保持对应 TCP_Connection 运行，用它的 xActive 作为该槽位连接是否仍有效的唯一依据。
        uiUsedSlotCount := uiUsedSlotCount + 1;
        aTcpAccept[uiIndex](xEnable := TRUE, hServer := hServer);
    ELSE
        IF uiFreeSlot = 0 THEN
            // 本周期只开放第一个空闲槽位接收新连接，控制 PLC 单周期接入工作量。
            uiFreeSlot := uiIndex;
            aTcpAccept[uiIndex](xEnable := TRUE, hServer := hServer);
        ELSE
            // 其他空闲槽位禁用，避免同一扫描周期多个空槽同时竞争同一个新连接。
            aTcpAccept[uiIndex](xEnable := FALSE, hServer := hServer);
        END_IF
    END_IF

    IF aTcpAccept[uiIndex].xActive THEN
        xTcpAcceptActive := TRUE;
    END_IF

    IF aTcpAccept[uiIndex].xError THEN
        xTcpAcceptError := TRUE;
        eTcpAcceptErrorID := aTcpAccept[uiIndex].eError;
    END_IF
END_FOR

uiAcceptFreeSlot := uiFreeSlot;
uiActiveSlotCount := uiUsedSlotCount;

IF xTcpAcceptError THEN
    eLastError := E_MqttBrokerError.uiTcpAcceptFailed;
    xError := TRUE;
    stMetrics.udiRejectedConnections := stMetrics.udiRejectedConnections + 1;
    M_AcceptNewConnection := FALSE;
    RETURN;
END_IF

IF uiFreeSlot <> 0 THEN
    hNewConnection := aTcpAccept[uiFreeSlot].hConnection;

    IF (hNewConnection <> 0)
        AND aTcpAccept[uiFreeSlot].xActive
        AND (hNewConnection <> hLastDispatchedConnection) THEN
        hLastAcceptHandle := hNewConnection;
        // 新连接只交给 uiFreeSlot 对应的连接 FB。
        // xConnectionActiveIn 必须来自同一个槽位的 aTcpAccept[uiFreeSlot].xActive，
        // 不能用全局 xTcpAcceptActive，否则会让某个槽位误读其他槽位的 TCP 状态。
        // NBS.TCP_Connection 的 hConnection 在部分运行时会短暂保留上一拍句柄。
        // 如果不排除 hLastDispatchedConnection，空闲槽位可能反复接收同一个旧句柄，
        // 在线表现就是 xTcpAcceptActive、uiAcceptFreeSlot、uiActiveSlotCount 不断闪烁，
        // 而连接槽位始终读不到 CONNECT 首包。
        aConnections[uiFreeSlot](
            bEnable := TRUE,
            uiSlot := uiFreeSlot,
            hConnectionIn := hNewConnection,
            xConnectionActiveIn := aTcpAccept[uiFreeSlot].xActive,
            udiNowMs := udiNowMs,
            stConnection => aConnectionStates[uiFreeSlot]);
        hLastDispatchedConnection := hNewConnection;
        uiActiveSlotCount := uiUsedSlotCount + 1;
        stMetrics.udiAcceptedConnections := stMetrics.udiAcceptedConnections + 1;
        M_LogDiag(uiSlot := uiFreeSlot, eError := E_MqttBrokerError.uiNoError, sMessage := 'TCP client accepted');
    END_IF
ELSE
    hNewConnection := 0;
END_IF

M_AcceptNewConnection := TRUE;

/// =======================================================================
/// 名称      : M_CheckAuth
/// 功能      : 校验 MQTT CONNECT 用户名和密码
/// 说明      : 未启用认证时直接放行；启用后使用固定小表匹配，适合工业内网轻量部署。
/// 编程人员  : ControlRookie
/// 时间      : 2026-05-08
/// 版本      : V1.0
/// =======================================================================
{attribute 'hide_all_locals'}
METHOD M_CheckAuth : BOOL
VAR_INPUT
    sUsername : STRING; // CONNECT 中解析出的用户名
    sPassword : STRING; // CONNECT 中解析出的密码
END_VAR
VAR
    uiIndex   : UINT; // 固定用户表扫描索引[1..cnMaxAuthUsers]
END_VAR

// === IMPLEMENTATION ===
IF NOT xAuthEnable THEN
    M_CheckAuth := TRUE;
    RETURN;
END_IF

FOR uiIndex := 1 TO GVL_MqttBroker.cnMaxAuthUsers DO
    IF aAuthUsers[uiIndex].xUsed
        AND (aAuthUsers[uiIndex].sUsername = sUsername)
        AND (aAuthUsers[uiIndex].sPassword = sPassword) THEN
        M_CheckAuth := TRUE;
        RETURN;
    END_IF
END_FOR

M_CheckAuth := FALSE;

/// =======================================================================
/// 名称      : M_CheckPublishAcl
/// 功能      : 校验客户端是否允许发布指定 Topic
/// 说明      : ACL 未启用时直接放行；启用后按 ClientID / 用户名 / Topic 前缀固定表匹配。
/// 编程人员  : ControlRookie
/// 时间      : 2026-05-08
/// 版本      : V1.0
/// =======================================================================
{attribute 'hide_all_locals'}
METHOD M_CheckPublishAcl : BOOL
VAR_INPUT
    uiSlot : UINT; // 发布来源客户端槽位编号[1..cnMaxClientSlots]
    sTopic : STRING; // 发布 Topic Name
END_VAR
VAR
    uiIndex : UINT; // ACL 固定规则表扫描索引[1..cnMaxAclRules]
END_VAR

// === IMPLEMENTATION ===
IF NOT xAclEnable THEN
    M_CheckPublishAcl := TRUE;
    RETURN;
END_IF

IF (uiSlot < 1) OR (uiSlot > GVL_MqttBroker.cnMaxClientSlots) THEN
    M_CheckPublishAcl := FALSE;
    RETURN;
END_IF

FOR uiIndex := 1 TO GVL_MqttBroker.cnMaxAclRules DO
    IF aAclRules[uiIndex].xUsed
        AND aAclRules[uiIndex].xAllowPublish
        AND ((aAclRules[uiIndex].sClientId = '') OR (aAclRules[uiIndex].sClientId = aConnectionStates[uiSlot].sClientId))
        AND ((aAclRules[uiIndex].sUsername = '') OR (aAclRules[uiIndex].sUsername = aConnectionStates[uiSlot].sUsername))
        AND F_MqttStartsWith(sValue := sTopic, sPrefix := aAclRules[uiIndex].sTopicPrefix) THEN
        M_CheckPublishAcl := TRUE;
        RETURN;
    END_IF
END_FOR

M_CheckPublishAcl := FALSE;

/// =======================================================================
/// 名称      : M_CheckSubscribeAcl
/// 功能      : 校验客户端是否允许订阅指定 Topic Filter
/// 说明      : ACL 未启用时直接放行；启用后按固定 Topic 前缀和通配符许可校验。
/// 编程人员  : ControlRookie
/// 时间      : 2026-05-08
/// 版本      : V1.0
/// =======================================================================
{attribute 'hide_all_locals'}
METHOD M_CheckSubscribeAcl : BOOL
VAR_INPUT
    uiSlot       : UINT; // 订阅来源客户端槽位编号[1..cnMaxClientSlots]
    sTopicFilter : STRING; // 客户端请求的 Topic Filter
END_VAR
VAR
    uiIndex      : UINT; // ACL 固定规则表扫描索引[1..cnMaxAclRules]
    xHasWildcard : BOOL; // 当前 Topic Filter 是否包含 + 或 # 通配符
END_VAR

// === IMPLEMENTATION ===
IF NOT xAclEnable THEN
    M_CheckSubscribeAcl := TRUE;
    RETURN;
END_IF

IF (uiSlot < 1) OR (uiSlot > GVL_MqttBroker.cnMaxClientSlots) THEN
    M_CheckSubscribeAcl := FALSE;
    RETURN;
END_IF

xHasWildcard := F_MqttContainsWildcard(sTopicFilter := sTopicFilter);

FOR uiIndex := 1 TO GVL_MqttBroker.cnMaxAclRules DO
    IF aAclRules[uiIndex].xUsed
        AND aAclRules[uiIndex].xAllowSubscribe
        AND ((aAclRules[uiIndex].sClientId = '') OR (aAclRules[uiIndex].sClientId = aConnectionStates[uiSlot].sClientId))
        AND ((aAclRules[uiIndex].sUsername = '') OR (aAclRules[uiIndex].sUsername = aConnectionStates[uiSlot].sUsername))
        AND ((NOT xHasWildcard) OR aAclRules[uiIndex].xAllowWildcard)
        AND F_MqttStartsWith(sValue := sTopicFilter, sPrefix := aAclRules[uiIndex].sTopicPrefix) THEN
        M_CheckSubscribeAcl := TRUE;
        RETURN;
    END_IF
END_FOR

M_CheckSubscribeAcl := FALSE;

/// =======================================================================
/// 名称      : M_ClearDiag
/// 功能      : 清除 Broker 诊断环形历史
/// 说明      : 维护动作必须显式触发，清除后写入一条新的维护记录。
/// 编程人员  : ControlRookie
/// 时间      : 2026-05-08
/// 版本      : V1.0
/// =======================================================================
{attribute 'hide_all_locals'}
METHOD M_ClearDiag : BOOL
VAR
    uiIndex : UINT; // 诊断历史清理索引[1..cnDiagHistorySize]
END_VAR

// === IMPLEMENTATION ===
FOR uiIndex := 1 TO GVL_MqttBroker.cnDiagHistorySize DO
    aDiagHistory[uiIndex].xUsed := FALSE;
    aDiagHistory[uiIndex].uiSlot := 0;
    aDiagHistory[uiIndex].eError := E_MqttBrokerError.uiNoError;
    aDiagHistory[uiIndex].udiTimeMs := 0;
    aDiagHistory[uiIndex].sMessage := '';
END_FOR

uiDiagWriteIndex := 1;
uiDiagHistoryCount := 0;
M_LogDiag(uiSlot := 0, eError := E_MqttBrokerError.uiNoError, sMessage := 'Diagnostic history cleared');
M_ClearDiag := TRUE;

/// =======================================================================
/// 名称      : M_ClearMetrics
/// 功能      : 清除 Broker 运行统计计数
/// 说明      : 仅清零统计，不释放连接和业务表，适合现场重新开始观察计数。
/// 编程人员  : ControlRookie
/// 时间      : 2026-05-08
/// 版本      : V1.0
/// =======================================================================
{attribute 'hide_all_locals'}
METHOD M_ClearMetrics : BOOL

// === IMPLEMENTATION ===
stMetrics.udiAcceptedConnections := 0;
stMetrics.udiRejectedConnections := 0;
stMetrics.udiCurrentConnections := 0;
stMetrics.udiMqttSessions := 0;
stMetrics.udiPublishReceived := 0;
stMetrics.udiPublishDelivered := 0;
stMetrics.udiPublishDropped := 0;
stMetrics.udiSubscribeReceived := 0;
stMetrics.udiUnsubscribeReceived := 0;
stMetrics.udiPubAckSent := 0;
stMetrics.udiPubAckReceived := 0;
stMetrics.udiPubRecSent := 0;
stMetrics.udiPubRecReceived := 0;
stMetrics.udiPubRelSent := 0;
stMetrics.udiPubRelReceived := 0;
stMetrics.udiPubCompSent := 0;
stMetrics.udiPubCompReceived := 0;
stMetrics.udiRetainUpdated := 0;
stMetrics.udiRetainCleared := 0;
stMetrics.udiWillPublished := 0;
stMetrics.udiQoS1Retries := 0;
stMetrics.udiQoS2Retries := 0;
stMetrics.udiKeepAliveTimeouts := 0;
stMetrics.udiProtocolErrors := 0;
stMetrics.udiAuthRejected := 0;
stMetrics.udiAclRejected := 0;
M_LogDiag(uiSlot := 0, eError := E_MqttBrokerError.uiNoError, sMessage := 'Runtime metrics cleared');
M_ClearMetrics := TRUE;

/// =======================================================================
/// 名称      : M_HandleDuplicateClientId
/// 功能      : 处理重复 ClientID
/// 说明      : 新会话建立后，如果发现旧槽位使用相同 ClientID，则断开旧槽位，保留新槽位。
/// 编程人员  : ControlRookie
/// 时间      : 2026-05-08
/// 版本      : V1.0
/// =======================================================================
{attribute 'hide_all_locals'}
METHOD M_HandleDuplicateClientId : BOOL
VAR_INPUT
    uiNewSlot : UINT; // 新建立 MQTT 会话的槽位编号[1..cnMaxClientSlots]
END_VAR
VAR
    uiIndex   : UINT; // 连接槽位扫描索引[1..cnMaxClientSlots]
    sClientId : STRING(GVL_MqttBroker.cnMaxClientIdLen); // 新连接 ClientID 快照
END_VAR

// === IMPLEMENTATION ===
IF (uiNewSlot < 1) OR (uiNewSlot > GVL_MqttBroker.cnMaxClientSlots) THEN
    M_HandleDuplicateClientId := FALSE;
    RETURN;
END_IF

sClientId := aConnectionStates[uiNewSlot].sClientId;

IF sClientId = '' THEN
    M_HandleDuplicateClientId := FALSE;
    RETURN;
END_IF

FOR uiIndex := 1 TO GVL_MqttBroker.cnMaxClientSlots DO
    IF (uiIndex <> uiNewSlot)
        AND aConnections[uiIndex].xActive
        AND aConnections[uiIndex].xMqttConnected
        AND (aConnectionStates[uiIndex].sClientId = sClientId) THEN
        // MQTT 3.1.1 规定同一个 ClientID 同时只能有一个在线会话。
        // 两个客户端如果配置了相同 ClientID，新连接会替换旧连接；这不是端口容量不足，而是协议规则。
        aConnections[uiIndex].M_RequestDisconnect();
        M_LogDiag(uiSlot := uiIndex, eError := E_MqttBrokerError.uiDuplicateClientId, sMessage := 'Duplicate ClientID old connection disconnected');
    END_IF
END_FOR

M_HandleDuplicateClientId := TRUE;

/// =======================================================================
/// 名称      : M_KickClient
/// 功能      : 踢掉指定 ClientID 的在线连接
/// 说明      : 用于维护操作和重复 ClientID 冲突处理，释放动作由连接清理流程统一完成。
/// 编程人员  : ControlRookie
/// 时间      : 2026-05-08
/// 版本      : V1.0
/// =======================================================================
{attribute 'hide_all_locals'}
METHOD M_KickClient : BOOL
VAR_INPUT
    sClientId : STRING; // 需要断开的 MQTT ClientID
END_VAR
VAR
    uiIndex   : UINT; // 连接槽位扫描索引[1..cnMaxClientSlots]
END_VAR

// === IMPLEMENTATION ===
IF sClientId = '' THEN
    M_KickClient := FALSE;
    RETURN;
END_IF

FOR uiIndex := 1 TO GVL_MqttBroker.cnMaxClientSlots DO
    IF aConnections[uiIndex].xActive
        AND (aConnectionStates[uiIndex].sClientId = sClientId) THEN
        aConnections[uiIndex].M_RequestDisconnect();
        M_LogDiag(uiSlot := uiIndex, eError := E_MqttBrokerError.uiNoError, sMessage := 'Client kicked by maintenance command');
        M_KickClient := TRUE;
        RETURN;
    END_IF
END_FOR

M_KickClient := FALSE;

/// =======================================================================
/// 名称      : M_LogDiag
/// 功能      : 写入 Broker 诊断环形历史
/// 说明      : 所有关键异常和维护动作写入固定 ring buffer，避免动态内存和日志文件依赖。
/// 编程人员  : ControlRookie
/// 时间      : 2026-05-08
/// 版本      : V1.0
/// =======================================================================
{attribute 'hide_all_locals'}
METHOD M_LogDiag : BOOL
VAR_INPUT
    uiSlot   : UINT; // 事件关联客户端槽位，0 表示 Broker 顶层事件[1..cnMaxClientSlots]
    eError   : E_MqttBrokerError; // 事件关联错误码或状态码
    sMessage : STRING; // 面向现场工程师的简短中文诊断文本
END_VAR

// === IMPLEMENTATION ===
IF (uiDiagWriteIndex < 1) OR (uiDiagWriteIndex > GVL_MqttBroker.cnDiagHistorySize) THEN
    uiDiagWriteIndex := 1;
END_IF

aDiagHistory[uiDiagWriteIndex].xUsed := TRUE;
aDiagHistory[uiDiagWriteIndex].uiSlot := uiSlot;
aDiagHistory[uiDiagWriteIndex].eError := eError;
aDiagHistory[uiDiagWriteIndex].udiTimeMs := udiNowMs;
aDiagHistory[uiDiagWriteIndex].sMessage := sMessage;
IF uiDiagHistoryCount < GVL_MqttBroker.cnDiagHistorySize THEN
    uiDiagHistoryCount := uiDiagHistoryCount + 1;
END_IF

uiDiagWriteIndex := uiDiagWriteIndex + 1;
IF uiDiagWriteIndex > GVL_MqttBroker.cnDiagHistorySize THEN
    uiDiagWriteIndex := 1;
END_IF

M_LogDiag := TRUE;

/// =======================================================================
/// 名称      : M_ServiceConnections
/// 功能      : 调度所有连接槽位
/// 说明      : 逐槽位处理入站事件、订阅路由、Retain 补发、Will 和资源清理。
/// 编程人员  : ControlRookie
/// 时间      : 2026-05-08
/// 版本      : V1.0
/// =======================================================================
{attribute 'hide_all_locals'}
METHOD M_ServiceConnections : BOOL
VAR
    uiIndex       : UINT; // 连接槽位扫描索引[1..cnMaxClientSlots]
    uiRouteCount  : UINT; // 本扫描周期已生成的路由投递数量
    stWill        : ST_MqttBrokerPublishFrame; // 异常断线时生成的 Will 发布帧
END_VAR

// === IMPLEMENTATION ===
stMetrics.udiCurrentConnections := 0;
stMetrics.udiMqttSessions := 0;
uiRouteCount := 0;

FOR uiIndex := 1 TO GVL_MqttBroker.cnMaxClientSlots DO
    aConnections[uiIndex](
        bEnable := TRUE,
        uiSlot := uiIndex,
        hConnectionIn := 0,
        xConnectionActiveIn := aTcpAccept[uiIndex].xActive,
        udiNowMs := udiNowMs,
        stConnection => aConnectionStates[uiIndex]);

    IF aConnections[uiIndex].xActive THEN
        stMetrics.udiCurrentConnections := stMetrics.udiCurrentConnections + 1;
    END_IF

    IF aConnections[uiIndex].xMqttConnected THEN
        stMetrics.udiMqttSessions := stMetrics.udiMqttSessions + 1;

        IF NOT aConnectionStates[uiIndex].xAuthenticated THEN
            IF M_CheckAuth(
                sUsername := aConnectionStates[uiIndex].sUsername,
                sPassword := aConnectionStates[uiIndex].sPassword) THEN
                aConnections[uiIndex].M_SetAuthenticated();
                M_HandleDuplicateClientId(uiNewSlot := uiIndex);
                M_LogDiag(uiSlot := uiIndex, eError := E_MqttBrokerError.uiNoError, sMessage := 'MQTT session authenticated');
            ELSE
                stMetrics.udiAuthRejected := stMetrics.udiAuthRejected + 1;
                aConnections[uiIndex].M_RequestDisconnect();
                M_LogDiag(uiSlot := uiIndex, eError := E_MqttBrokerError.uiUnsupportedProtocol, sMessage := 'MQTT session authentication failed');
            END_IF
        END_IF
    END_IF

    IF aConnections[uiIndex].xSubscribeReady THEN
        stMetrics.udiSubscribeReceived := stMetrics.udiSubscribeReceived + 1;
        M_HandleSubscribe(uiSlot := uiIndex);
    END_IF

    IF aConnections[uiIndex].xUnsubReady THEN
        stMetrics.udiUnsubscribeReceived := stMetrics.udiUnsubscribeReceived + 1;
        M_HandleUnsubscribe(uiSlot := uiIndex);
    END_IF

    IF aConnections[uiIndex].xPubAckReady THEN
        IF fbTxScheduler.M_AckPublish(
            uiSlot := uiIndex,
            uiPacketId := aConnections[uiIndex].uiPubAckPacketId) THEN
            stMetrics.udiPubAckReceived := stMetrics.udiPubAckReceived + 1;
        END_IF
    END_IF

    IF aConnections[uiIndex].xPubRecReady THEN
        IF fbTxScheduler.M_ReceivePubRec(
            uiSlot := uiIndex,
            uiPacketId := aConnections[uiIndex].uiPubRecPacketId,
            udiNowMs := udiNowMs,
            xNeedPubRel => xNeedPubRel) THEN
            stMetrics.udiPubRecReceived := stMetrics.udiPubRecReceived + 1;
            IF xNeedPubRel THEN
                aConnections[uiIndex].M_EnqueueProtocolAck(
                    ePacketType := E_MqttPacketType.byPubRel,
                    uiPacketId := aConnections[uiIndex].uiPubRecPacketId,
                    byReturnCode := 0);
                stMetrics.udiPubRelSent := stMetrics.udiPubRelSent + 1;
            END_IF
        END_IF
    END_IF

    IF aConnections[uiIndex].xPubRelReady THEN
        IF fbRxScheduler.M_TakePublishForPubRel(
            stPublish := stQoS2Route,
            uiSlot := uiIndex,
            uiPacketId := aConnections[uiIndex].uiPubRelPacketId,
            udiNowMs := udiNowMs,
            xNeedRoute => xNeedRoute) THEN
            stMetrics.udiPubRelReceived := stMetrics.udiPubRelReceived + 1;
            IF xNeedRoute THEN
                // QoS2 的 Retain 写入和订阅路由必须在 PUBREL 阶段执行。
                // 收到 PUBLISH 时只回 PUBREC，不允许提前路由；否则 exactly once 语义会被破坏。
                // 之前这里未实际进入 M_RoutePublishNow，会导致 QoS2+Retain 消息不会保存到 Retain 表。
                M_RoutePublishNow(stPublish := stQoS2Route);
            END_IF
            aConnections[uiIndex].M_EnqueueProtocolAck(
                ePacketType := E_MqttPacketType.byPubComp,
                uiPacketId := aConnections[uiIndex].uiPubRelPacketId,
                byReturnCode := 0);
            fbRxScheduler.M_CompletePublish(uiSlot := uiIndex, uiPacketId := aConnections[uiIndex].uiPubRelPacketId);
            stMetrics.udiPubCompSent := stMetrics.udiPubCompSent + 1;
        END_IF
    END_IF

    IF aConnections[uiIndex].xPubCompReady THEN
        IF fbTxScheduler.M_ReceivePubComp(
            uiSlot := uiIndex,
            uiPacketId := aConnections[uiIndex].uiPubCompPacketId) THEN
            stMetrics.udiPubCompReceived := stMetrics.udiPubCompReceived + 1;
        END_IF
    END_IF

    IF aConnections[uiIndex].xPublishReady THEN
        M_HandlePublish(uiSourceSlot := uiIndex, stPublish := aConnections[uiIndex].stPublishOut);
    END_IF

    IF aConnections[uiIndex].xNeedCleanup THEN
        xLastCleanupValid := TRUE;
        uiLastCleanupSlot := uiIndex;
        udiLastCleanupMs := udiNowMs;
        stLastCleanupSnapshot.xUsed := aConnections[uiIndex].xActive;
        stLastCleanupSnapshot.xMqttConnected := aConnections[uiIndex].xMqttConnected;
        stLastCleanupSnapshot.xDisconnectRequested := aConnectionStates[uiIndex].xDisconnectRequested;
        stLastCleanupSnapshot.xTcpReadError := aConnections[uiIndex].xTcpReadError;
        stLastCleanupSnapshot.xTcpWriteError := aConnections[uiIndex].xTcpWriteError;
        stLastCleanupSnapshot.xWriteBusy := aConnections[uiIndex].xWriteBusy;
        stLastCleanupSnapshot.xWriteExecute := aConnections[uiIndex].xWriteExecute;
        stLastCleanupSnapshot.xConnectionActive := aConnections[uiIndex].xConnectionActive;
        stLastCleanupSnapshot.xLastTcpReadError := aConnections[uiIndex].xLastTcpReadError;
        stLastCleanupSnapshot.uiSlot := uiIndex;
        stLastCleanupSnapshot.uiTcpReadErrorCount := aConnections[uiIndex].uiTcpReadErrorCountOut;
        stLastCleanupSnapshot.byProtocolLevel := aConnectionStates[uiIndex].byProtocolLevel;
        stLastCleanupSnapshot.uiKeepAlive := aConnectionStates[uiIndex].uiKeepAlive;
        stLastCleanupSnapshot.udiLastActivityMs := aConnectionStates[uiIndex].udiLastActivityMs;
        stLastCleanupSnapshot.udiLastTcpActiveMs := aConnectionStates[uiIndex].udiLastTcpActiveMs;
        stLastCleanupSnapshot.udiLastBytesRead := aConnections[uiIndex].udiLastBytesRead;
        stLastCleanupSnapshot.udiLastNonZeroBytesRead := aConnections[uiIndex].udiLastNonZeroBytesRead;
        stLastCleanupSnapshot.hConnection := aConnectionStates[uiIndex].hConnection;
        stLastCleanupSnapshot.uiRxLength := aConnectionStates[uiIndex].uiRxLength;
        stLastCleanupSnapshot.uiTxLength := aConnectionStates[uiIndex].uiTxLength;
        stLastCleanupSnapshot.uiLastFrameLen := aConnections[uiIndex].uiLastFrameLen;
        stLastCleanupSnapshot.byLastPacketType := aConnections[uiIndex].byLastPacketType;
        stLastCleanupSnapshot.byLastConnectLevel := aConnections[uiIndex].byLastConnectLevel;
        stLastCleanupSnapshot.xLastConnectParsed := aConnections[uiIndex].xLastConnectParsed;
        stLastCleanupSnapshot.uiProtocolQueueCount := aConnectionStates[uiIndex].uiProtocolQueueCount;
        stLastCleanupSnapshot.uiDeliveryQueueCount := aConnectionStates[uiIndex].uiDeliveryQueueCount;
        stLastCleanupSnapshot.uiRxInflightCount := fbRxScheduler.M_CountSlot(uiSlot := uiIndex);
        stLastCleanupSnapshot.uiTxInflightCount := fbTxScheduler.M_CountSlot(uiSlot := uiIndex);
        stLastCleanupSnapshot.eState := aConnectionStates[uiIndex].eState;
        stLastCleanupSnapshot.eLastError := aConnections[uiIndex].eLastError;
        stLastCleanupSnapshot.eLastParseError := aConnections[uiIndex].eLastParseError;
        stLastCleanupSnapshot.eTcpReadErrorID := aConnections[uiIndex].eTcpReadErrorID;
        stLastCleanupSnapshot.eLastTcpReadErrorID := aConnections[uiIndex].eLastTcpReadErrorID;
        stLastCleanupSnapshot.eTcpWriteErrorID := aConnections[uiIndex].eTcpWriteErrorID;
        stLastCleanupSnapshot.sClientId := aConnectionStates[uiIndex].sClientId;
        stLastCleanupSnapshot.sUsername := aConnectionStates[uiIndex].sUsername;

        IF aConnectionStates[uiIndex].hConnection = hLastDispatchedConnection THEN
            hLastDispatchedConnection := 0;
        END_IF
        aTcpAccept[uiIndex](xEnable := FALSE, hServer := hServer);

        IF aConnectionStates[uiIndex].xWillFlag AND NOT aConnectionStates[uiIndex].xGracefulDisconnect THEN
            stWill.xValid := TRUE;
            stWill.uiSourceSlot := uiIndex;
            stWill.uiTargetSlot := 0;
            stWill.uiPacketId := 0;
            stWill.eQoS := aConnectionStates[uiIndex].eWillQoS;
            stWill.xDup := FALSE;
            stWill.xRetain := aConnectionStates[uiIndex].xWillRetain;
            stWill.uiTopicLen := TO_UINT(LEN(aConnectionStates[uiIndex].sWillTopic));
            stWill.uiPayloadLen := TO_UINT(LEN(aConnectionStates[uiIndex].sWillPayload));
            stWill.sTopic := aConnectionStates[uiIndex].sWillTopic;
            stWill.sPayload := aConnectionStates[uiIndex].sWillPayload;
            M_HandlePublish(uiSourceSlot := uiIndex, stPublish := stWill);
            stMetrics.udiWillPublished := stMetrics.udiWillPublished + 1;
        END_IF

        fbRouter.M_ClearSlot(uiSlot := uiIndex);
        fbRxScheduler.M_ClearSlot(uiSlot := uiIndex);
        fbTxScheduler.M_ClearSlot(uiSlot := uiIndex);
        aConnections[uiIndex](
            bEnable := FALSE,
            uiSlot := uiIndex,
            hConnectionIn := 0,
            xConnectionActiveIn := FALSE,
            udiNowMs := udiNowMs,
            stConnection => aConnectionStates[uiIndex]);
    END_IF
END_FOR

M_ServiceConnections := TRUE;

/// =======================================================================
/// 名称      : M_UpdateSnapshots
/// 功能      : 更新每连接状态快照
/// 说明      : HMI 或在线监控直接读取快照数组即可定位连接、队列和事务状态。
/// 编程人员  : ControlRookie
/// 时间      : 2026-05-08
/// 版本      : V1.0
/// =======================================================================
{attribute 'hide_all_locals'}
METHOD M_UpdateSnapshots : BOOL
VAR
    uiIndex : UINT; // 连接槽位扫描索引[1..cnMaxClientSlots]
END_VAR

// === IMPLEMENTATION ===
FOR uiIndex := 1 TO GVL_MqttBroker.cnMaxClientSlots DO
    aSnapshots[uiIndex].xUsed := aConnections[uiIndex].xActive;
    aSnapshots[uiIndex].xMqttConnected := aConnections[uiIndex].xMqttConnected;
    aSnapshots[uiIndex].xDisconnectRequested := aConnectionStates[uiIndex].xDisconnectRequested;
    aSnapshots[uiIndex].xTcpReadError := aConnections[uiIndex].xTcpReadError;
    aSnapshots[uiIndex].xTcpWriteError := aConnections[uiIndex].xTcpWriteError;
    aSnapshots[uiIndex].xWriteBusy := aConnections[uiIndex].xWriteBusy;
    aSnapshots[uiIndex].xWriteExecute := aConnections[uiIndex].xWriteExecute;
    aSnapshots[uiIndex].xConnectionActive := aConnections[uiIndex].xConnectionActive;
    aSnapshots[uiIndex].xLastTcpReadError := aConnections[uiIndex].xLastTcpReadError;
    aSnapshots[uiIndex].uiSlot := uiIndex;
    aSnapshots[uiIndex].uiTcpReadErrorCount := aConnections[uiIndex].uiTcpReadErrorCountOut;
    aSnapshots[uiIndex].byProtocolLevel := aConnectionStates[uiIndex].byProtocolLevel;
    aSnapshots[uiIndex].uiKeepAlive := aConnectionStates[uiIndex].uiKeepAlive;
    aSnapshots[uiIndex].udiLastActivityMs := aConnectionStates[uiIndex].udiLastActivityMs;
    aSnapshots[uiIndex].udiLastTcpActiveMs := aConnectionStates[uiIndex].udiLastTcpActiveMs;
    aSnapshots[uiIndex].udiLastBytesRead := aConnections[uiIndex].udiLastBytesRead;
    aSnapshots[uiIndex].udiLastNonZeroBytesRead := aConnections[uiIndex].udiLastNonZeroBytesRead;
    aSnapshots[uiIndex].hConnection := aConnectionStates[uiIndex].hConnection;
    aSnapshots[uiIndex].uiRxLength := aConnectionStates[uiIndex].uiRxLength;
    aSnapshots[uiIndex].uiTxLength := aConnectionStates[uiIndex].uiTxLength;
    aSnapshots[uiIndex].uiLastTxFrameCount := aConnections[uiIndex].uiLastTxFrameCount;
    aSnapshots[uiIndex].uiLastTxBytes := aConnections[uiIndex].uiLastTxBytes;
    aSnapshots[uiIndex].udiTxBatchCount := aConnections[uiIndex].udiTxBatchCount;
    aSnapshots[uiIndex].udiTxFrameCount := aConnections[uiIndex].udiTxFrameCount;
    aSnapshots[uiIndex].uiMaxDeliveryQueueCountSeen := aConnections[uiIndex].uiMaxDeliveryQueueCountSeen;
    aSnapshots[uiIndex].uiMaxProtocolQueueCountSeen := aConnections[uiIndex].uiMaxProtocolQueueCountSeen;
    aSnapshots[uiIndex].udiTxQueueFullDropped := aConnections[uiIndex].udiTxQueueFullDropped;
    aSnapshots[uiIndex].uiLastFrameLen := aConnections[uiIndex].uiLastFrameLen;
    aSnapshots[uiIndex].byLastPacketType := aConnections[uiIndex].byLastPacketType;
    aSnapshots[uiIndex].byLastConnectLevel := aConnections[uiIndex].byLastConnectLevel;
    aSnapshots[uiIndex].xLastConnectParsed := aConnections[uiIndex].xLastConnectParsed;
    aSnapshots[uiIndex].uiProtocolQueueCount := aConnectionStates[uiIndex].uiProtocolQueueCount;
    aSnapshots[uiIndex].uiDeliveryQueueCount := aConnectionStates[uiIndex].uiDeliveryQueueCount;
    aSnapshots[uiIndex].uiRxInflightCount := fbRxScheduler.M_CountSlot(uiSlot := uiIndex);
    aSnapshots[uiIndex].uiTxInflightCount := fbTxScheduler.M_CountSlot(uiSlot := uiIndex);
    aSnapshots[uiIndex].eState := aConnectionStates[uiIndex].eState;
    aSnapshots[uiIndex].eLastError := aConnections[uiIndex].eLastError;
    aSnapshots[uiIndex].eLastParseError := aConnections[uiIndex].eLastParseError;
    aSnapshots[uiIndex].eTcpReadErrorID := aConnections[uiIndex].eTcpReadErrorID;
    aSnapshots[uiIndex].eLastTcpReadErrorID := aConnections[uiIndex].eLastTcpReadErrorID;
    aSnapshots[uiIndex].eTcpWriteErrorID := aConnections[uiIndex].eTcpWriteErrorID;
    aSnapshots[uiIndex].sClientId := aConnectionStates[uiIndex].sClientId;
    aSnapshots[uiIndex].sUsername := aConnectionStates[uiIndex].sUsername;
END_FOR

M_UpdateSnapshots := TRUE;

/// =======================================================================
/// 名称      : FB_MqttBroker
/// 功能      : PLC 侧轻量 MQTT Broker
/// 说明      : 实现 MQTT 3.1.1、QoS0/QoS1、Retain、Will、KeepAlive 和 QoS2 扩展骨架。
/// 编程人员  : ControlRookie
/// 时间      : 2026-05-08
/// 版本      : V1.0
/// =======================================================================
{attribute 'hide_all_locals'}
FUNCTION_BLOCK FB_MqttBroker
VAR_INPUT
    bEnable       : BOOL := TRUE; // Broker 总使能，FALSE 时关闭监听并释放连接槽位运行态
    sBindIP       : STRING := '0.0.0.0'; // TCP 监听绑定地址，0.0.0.0 表示所有网卡
    uiPort        : UINT := GVL_MqttBroker.cnDefaultPort; // MQTT Broker TCP 监听端口号
    xAuthEnable   : BOOL := FALSE; // 是否启用固定用户表基础认证
    xAclEnable    : BOOL := FALSE; // 是否启用固定 Topic ACL 权限控制
    xClearDiag    : BOOL := FALSE; // 上升沿清除诊断环形历史
    xClearMetrics : BOOL := FALSE; // 上升沿清除运行统计计数
    xKickClient   : BOOL := FALSE; // 上升沿踢掉指定 ClientID 对应连接
    sKickClientId : STRING(GVL_MqttBroker.cnMaxClientIdLen); // 需要踢掉的 MQTT ClientID
END_VAR
VAR_OUTPUT
    eState             : E_MqttBrokerState; // Broker 顶层运行状态
    xRunning           : BOOL; // TRUE 表示 TCP 监听已启动并进入运行调度
    xError             : BOOL; // TRUE 表示 Broker 当前扫描周期存在监听、接入或资源类错误
    eLastError         : E_MqttBrokerError; // Broker 当前错误码，xError 为 FALSE 时必须保持 uiNoError
    stMetrics          : ST_MqttBrokerMetrics; // Broker 运行统计计数
    sDiagMsg           : STRING(255); // Broker 当前诊断文本
    hListenHandle      : NBS.CAA.HANDLE; // TCP_Server 当前监听句柄，非 0 表示端口监听已建立
    hLastAcceptHandle  : NBS.CAA.HANDLE; // 最近一次 TCP_Connection 输出的新连接句柄
    xTcpServerError    : BOOL; // TCP_Server 当前错误状态，TRUE 表示监听层失败
    xTcpAcceptActive   : BOOL; // TCP_Connection 当前是否检测到可接入连接
    xTcpAcceptError    : BOOL; // TCP_Connection 当前错误状态，TRUE 表示接入层失败
    eTcpServerErrorID  : NBS.ERROR; // TCP_Server 原始错误码，用于判断监听失败、端口占用或绑定地址异常
    eTcpAcceptErrorID  : NBS.ERROR; // TCP_Connection 原始错误码，用于判断接入层是否因服务端句柄或底层连接异常失败
    uiAcceptFreeSlot   : UINT; // 最近一次接入扫描发现的空闲槽位编号，0 表示没有空闲槽位[1..cnMaxClientSlots]
    uiActiveSlotCount  : UINT; // 最近一次接入扫描统计到的已占用连接槽位数量[个]
    xLastCleanupValid  : BOOL; // TRUE 表示 stLastCleanupSnapshot 已锁存过最近一次槽位释放前状态
    uiLastCleanupSlot  : UINT; // 最近一次被 Broker 清理释放的连接槽位编号[1..cnMaxClientSlots]
    udiLastCleanupMs   : ULINT; // 最近一次连接槽位被清理释放的系统时间戳[ms]
    stLastCleanupSnapshot : ST_MqttBrokerConnectionSnapshot; // 最近一次连接槽位释放前的完整诊断快照，专门定位瞬断原因
    aDiagHistory       : ARRAY[1..GVL_MqttBroker.cnDiagHistorySize] OF ST_MqttBrokerDiagItem; // 固定容量诊断环形历史，供在线调试直接观察最近事件
    uiDiagHistoryCount : UINT; // 当前诊断环形历史中已写入的有效条目数量[条]
    aSnapshots         : ARRAY[1..GVL_MqttBroker.cnMaxClientSlots] OF ST_MqttBrokerConnectionSnapshot; // 每连接状态快照
    uiRetainCount      : UINT; // 在线诊断：当前 Retain 表有效消息数量[条]
    sLastRetainTopic   : STRING(GVL_MqttBroker.cnMaxTopicLen); // 在线诊断：最近一次新增、更新或补发命中的 Retain Topic
    uiLastRetainPayloadLen : UINT; // 在线诊断：最近一次新增、更新或补发命中的 Retain Payload 长度[byte]
END_VAR
VAR
    rtrigClearDiag            : R_TRIG; // 清除诊断历史命令上升沿检测
    rtrigClearMetrics         : R_TRIG; // 清除统计计数命令上升沿检测
    rtrigKickClient           : R_TRIG; // 踢客户端命令上升沿检测
    fbServer                  : NBS.TCP_Server; // NBS TCP 服务端监听功能块
    aTcpAccept                : ARRAY[1..GVL_MqttBroker.cnMaxClientSlots] OF NBS.TCP_Connection; // 每个连接槽位独立持有一个 NBS TCP_Connection，保证 hConnection 生命周期跟槽位绑定，禁止改回单实例复用
    fbRouter                  : FB_MqttBrokerRouter; // MQTT 主题路由和 Retain 管理器
    fbRxScheduler             : FB_MqttBrokerRxScheduler; // 入站 QoS 事务调度器
    fbTxScheduler             : FB_MqttBrokerTxScheduler; // 出站 QoS 事务调度器
    aConnections              : ARRAY[1..GVL_MqttBroker.cnMaxClientSlots] OF FB_MqttBrokerConnection; // 固定容量连接槽位池
    aConnectionStates         : ARRAY[1..GVL_MqttBroker.cnMaxClientSlots] OF ST_MqttBrokerConnection; // 连接槽位公开状态镜像
    aAuthUsers                : ARRAY[1..GVL_MqttBroker.cnMaxAuthUsers] OF ST_MqttBrokerAuthUser; // 固定用户认证表，由工程师在工程中配置
    aAclRules                 : ARRAY[1..GVL_MqttBroker.cnMaxAclRules] OF ST_MqttBrokerAclRule; // 固定 Topic 权限规则表，由工程师在工程中配置
    ipBindAddr                : NBS.IP_ADDR; // NBS TCP_Server 绑定地址结构
    hServer                   : NBS.CAA.HANDLE; // NBS TCP_Server 输出监听句柄
    hNewConnection            : NBS.CAA.HANDLE; // NBS TCP_Connection 输出的新客户端连接句柄
    hLastDispatchedConnection : NBS.CAA.HANDLE; // 最近已分配到槽位的 TCP 连接句柄，用于避免同一句柄重复入槽
    uiSlotIndex               : UINT; // 连接槽位扫描索引[1..cnMaxClientSlots]
    uiFreeSlot                : UINT; // 当前发现的空闲连接槽位编号[1..cnMaxClientSlots]
    uiUsedSlotCount           : UINT; // 当前扫描统计到的已占用连接槽位数量[个]
    udiNowMs                  : ULINT; // 当前系统时间戳[ms]
    stTimeZone                : Util.TimeZone := (iBias := 480); // 本地时间转换时区配置[min]
    stDelivery                : ST_MqttBrokerPublishFrame; // 路由器或 Retain 返回的投递任务
    stRetry                   : ST_MqttBrokerPublishFrame; // 发送事务调度器返回的重发任务
    stQoS2Route               : ST_MqttBrokerPublishFrame; // QoS2 入站 PUBREL 首次确认后需要路由的发布帧
    xRouteFound               : BOOL; // 路由扫描是否找到匹配订阅
    xRetainFound              : BOOL; // Retain 扫描是否找到补发消息
    xRetryFound               : BOOL; // 事务调度器是否找到重发消息
    xRetryPubRel              : BOOL; // 事务调度器是否要求重发 QoS2 PUBREL
    uiRetryPubRelSlot         : UINT; // 需要重发 PUBREL 的客户端槽位编号[1..cnMaxClientSlots]
    uiRetryPubRelPacketId     : UINT; // 需要重发 PUBREL 的 Packet Identifier
    xRetryFailed              : BOOL; // 事务调度器是否发现重试耗尽
    xNeedPubRel               : BOOL; // 收到 PUBREC 后是否需要向订阅者发送 PUBREL
    xNeedRoute                : BOOL; // 收到 PUBREL 后是否需要执行 QoS2 首次路由
    uiFailedSlot              : UINT; // 重试耗尽的客户端槽位编号[1..cnMaxClientSlots]
    uiDiagWriteIndex          : UINT := 1; // 诊断环形历史下一次写入位置[1..cnDiagHistorySize]
END_VAR

// === IMPLEMENTATION ===
udiNowMs := GetLocalDateTime(tzTimeZone := stTimeZone);
ipBindAddr.sAddr := sBindIP;
hListenHandle := hServer;
hLastAcceptHandle := hNewConnection;
xTcpServerError := fbServer.xError;
xTcpAcceptActive := FALSE;
xTcpAcceptError := FALSE;
eTcpServerErrorID := fbServer.eError;
uiAcceptFreeSlot := uiFreeSlot;
uiActiveSlotCount := uiUsedSlotCount;
uiRetainCount := fbRouter.uiRetainCount;

rtrigClearDiag(CLK := xClearDiag);
rtrigClearMetrics(CLK := xClearMetrics);
rtrigKickClient(CLK := xKickClient);

IF rtrigClearDiag.Q THEN
    M_ClearDiag();
END_IF

IF rtrigClearMetrics.Q THEN
    M_ClearMetrics();
END_IF

IF rtrigKickClient.Q THEN
    M_KickClient(sClientId := sKickClientId);
END_IF

IF NOT bEnable THEN
    fbServer(xEnable := FALSE, ipAddr := ipBindAddr, uiPort := uiPort);
    hNewConnection := 0;
    hLastDispatchedConnection := 0;
    uiFreeSlot := 0;
    uiUsedSlotCount := 0;
    xLastCleanupValid := FALSE;
    uiLastCleanupSlot := 0;
    udiLastCleanupMs := 0;
    stLastCleanupSnapshot.xUsed := FALSE;
    stLastCleanupSnapshot.xMqttConnected := FALSE;
    stLastCleanupSnapshot.xDisconnectRequested := FALSE;
    stLastCleanupSnapshot.xTcpReadError := FALSE;
    stLastCleanupSnapshot.xTcpWriteError := FALSE;
    stLastCleanupSnapshot.xWriteBusy := FALSE;
    stLastCleanupSnapshot.xWriteExecute := FALSE;
    stLastCleanupSnapshot.xConnectionActive := FALSE;
    stLastCleanupSnapshot.xLastTcpReadError := FALSE;
    stLastCleanupSnapshot.uiSlot := 0;
    stLastCleanupSnapshot.uiTcpReadErrorCount := 0;
    stLastCleanupSnapshot.uiKeepAlive := 0;
    stLastCleanupSnapshot.udiLastActivityMs := 0;
    stLastCleanupSnapshot.udiLastTcpActiveMs := 0;
    stLastCleanupSnapshot.udiLastBytesRead := 0;
    stLastCleanupSnapshot.udiLastNonZeroBytesRead := 0;
    stLastCleanupSnapshot.hConnection := 0;
    stLastCleanupSnapshot.uiRxLength := 0;
    stLastCleanupSnapshot.uiTxLength := 0;
    stLastCleanupSnapshot.uiLastFrameLen := 0;
    stLastCleanupSnapshot.byLastPacketType := 0;
    stLastCleanupSnapshot.byLastConnectLevel := 0;
    stLastCleanupSnapshot.xLastConnectParsed := FALSE;
    stLastCleanupSnapshot.uiProtocolQueueCount := 0;
    stLastCleanupSnapshot.uiDeliveryQueueCount := 0;
    stLastCleanupSnapshot.uiRxInflightCount := 0;
    stLastCleanupSnapshot.uiTxInflightCount := 0;
    stLastCleanupSnapshot.eState := E_MqttConnectionState.iFree;
    stLastCleanupSnapshot.eLastError := E_MqttBrokerError.uiNoError;
    stLastCleanupSnapshot.eLastParseError := E_MqttBrokerError.uiNoError;
    stLastCleanupSnapshot.sClientId := '';
    stLastCleanupSnapshot.sUsername := '';
    uiDiagHistoryCount := 0;

    FOR uiSlotIndex := 1 TO GVL_MqttBroker.cnMaxClientSlots DO
        aTcpAccept[uiSlotIndex](xEnable := FALSE, hServer := hServer);
        aConnections[uiSlotIndex](
            bEnable := FALSE,
            uiSlot := uiSlotIndex,
            hConnectionIn := 0,
            xConnectionActiveIn := FALSE,
            udiNowMs := udiNowMs,
            stConnection => aConnectionStates[uiSlotIndex]);
    END_FOR

    eState := E_MqttBrokerState.iDisabled;
    xRunning := FALSE;
    xError := FALSE;
    eLastError := E_MqttBrokerError.uiNoError;
    sDiagMsg := 'Broker disabled';
    RETURN;
END_IF

CASE eState OF
    E_MqttBrokerState.iDisabled:
        eState := E_MqttBrokerState.iInit;
        xError := FALSE;
        eLastError := E_MqttBrokerError.uiNoError;
        sDiagMsg := 'Broker init';

    E_MqttBrokerState.iInit:
        stMetrics.udiCurrentConnections := 0;
        stMetrics.udiMqttSessions := 0;
        eState := E_MqttBrokerState.iListen;

    E_MqttBrokerState.iListen:
        fbServer(xEnable := TRUE, ipAddr := ipBindAddr, uiPort := uiPort);
        hServer := fbServer.hServer;
        hListenHandle := hServer;
        xTcpServerError := fbServer.xError;
        eTcpServerErrorID := fbServer.eError;

        IF fbServer.xError THEN
            eLastError := E_MqttBrokerError.uiTcpListenFailed;
            xError := TRUE;
            sDiagMsg := 'TCP listen failed';
            eState := E_MqttBrokerState.iFault;
        ELSIF hServer <> 0 THEN
            xRunning := TRUE;
            sDiagMsg := 'Broker running';
            eState := E_MqttBrokerState.iRunning;
        END_IF

    E_MqttBrokerState.iRunning:
        fbServer(xEnable := TRUE, ipAddr := ipBindAddr, uiPort := uiPort);
        hServer := fbServer.hServer;
        hListenHandle := hServer;
        xTcpServerError := fbServer.xError;
        eTcpServerErrorID := fbServer.eError;

        IF fbServer.xError THEN
            eLastError := E_MqttBrokerError.uiTcpListenFailed;
            xError := TRUE;
            sDiagMsg := 'TCP listen error while running';
            eState := E_MqttBrokerState.iFault;
        ELSE
            xError := FALSE;
            eLastError := E_MqttBrokerError.uiNoError;
            // TCP 接入调度必须先于连接槽位业务调度：
            // 1. aTcpAccept[] 每个槽位一个实例，避免多个客户端共享同一个 hConnection 生命周期。
            // 2. FB_MqttBrokerConnection 只在对应 aTcpAccept[slot].xActive 为 TRUE 时读写 TCP。
            // 3. 这个顺序能防止“槽位刚置位又复位”的旧问题再次出现。
            M_AcceptNewConnection();
            M_ServiceConnections();
            M_ServiceRetries();
            M_UpdateSnapshots();
            IF eLastError <> E_MqttBrokerError.uiNoError THEN
                xError := TRUE;
            END_IF
            IF xTcpServerError OR xTcpAcceptError THEN
                xError := TRUE;
                IF xTcpServerError THEN
                    eLastError := E_MqttBrokerError.uiTcpListenFailed;
                ELSIF xTcpAcceptError THEN
                    eLastError := E_MqttBrokerError.uiTcpAcceptFailed;
                END_IF
            END_IF
        END_IF

    E_MqttBrokerState.iFault:
        xRunning := FALSE;
        xError := TRUE;
        FOR uiSlotIndex := 1 TO GVL_MqttBroker.cnMaxClientSlots DO
            aTcpAccept[uiSlotIndex](xEnable := FALSE, hServer := hServer);
        END_FOR
ELSE
    eLastError := E_MqttBrokerError.uiInvalidState;
    xError := TRUE;
    eState := E_MqttBrokerState.iFault;
END_CASE
